End-to-end coupling solutions for cranes and hoists

When it comes to gearbox coupling applications, some misalignment is unavoidable. This is especially true for cranes and hoists due to their very heavy loads. Fortunately, you can manage misalignment by choosing the right couplings. Here are some options specifically for cranes and hoists:

Connecting the Gearbox and Cable Drum

Recommended for crane-lifting mechanisms, barrel couplings are used to connect the cable drum with the gearbox output shaft and are also used in winch conveyors and platform hoists. Mounting inaccuracies, structural deformation and normal wear and tear in moving parts all lead to angular and axial shaft misalignment, generating additional forces in the gearbox output shaft. Without the flexibility provided by the coupling, the forces created by the alternating bending loads can lead to shaft breakage and severe damage to bearings and gears.

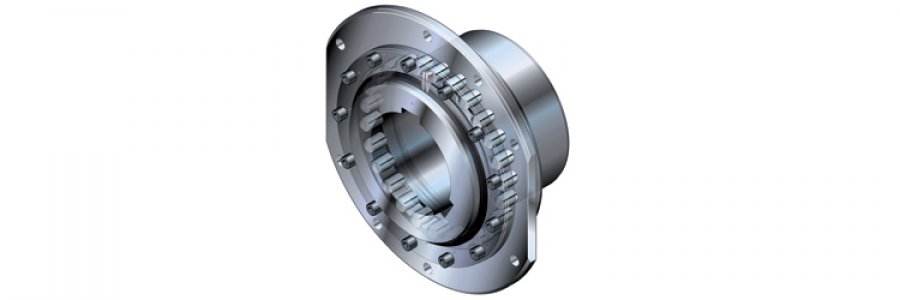

When installed between the cable drum and gearbox, barrel couplings perform the function of an articulated joint, making the connection statically determinate and avoiding high bending moments. They can also handle heavy loads, making them suitable for cranes with very high weight limits, such as container cranes. The TSCHAN TK barrel coupling, for example, can handle loads up to 685,000 Nm.

Connecting the Gearbox and Drive Motor

In crane applications, couplings can also be used to connect the drive motor and gearbox. You typically have three options, all of which are designed to compensate for angular, radial and axial shaft misalignments:

Claw coupling: Torsionally flexible, these couplings transmit torque via elastic buffers made from Perbunan (Pb), which are joined together as an intermediate ring. This ring dampens shocks and torsional vibrations, is resistant to oil and can handle wide temperature ranges. Because of their dampening capabilities, claw couplings are preferable in many crane applications.

Disc coupling: Unlike claw couplings, which contain rubber, rigid all-metal disc couplings require no lubrication and will operate reliably with little to no wear or maintenance.

Gear coupling: These couplings transmit torque via hubs with crowned gear teeth, which are in permanent mesh with the straight gear teeth of the sleeves. This option provides the most torque for a given coupling size, adding even more design options.

For more information, visit www.ringfeder.com.
