Ruland manufactures shaft collars from carefully specified raw materials with fine finishes, high holding power, and precise face to bore perpendicularity, making them suitable for medical analysis equipment. Clamp-style shaft collars are commonly used for guiding, spacing, stopping, and component alignment.

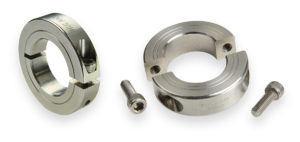

Medical analysis equipment manufacturers benefit from the tightly controlled face to bore perpendicularity of these shaft collars (TIR of ≤ .002-in. or .05 mm) which is critical when the collar is used as a load-bearing face or for aligning components such as bearings or gears. These clamp-style shaft collars distribute compressive forces evenly around the shaft for a tight fit and improved holding power when compared to set screw style collars. Two-piece style collars offer increased holding power, in-place installation and disassembly, and are mated throughout the manufacturing process for proper fit and alignment.
These shaft collars use fastening hardware that tests beyond industry standards for maximum torque capabilities and holding power. Shaft collars made from 303 or 316 stainless steel have the hardware of like material for consistent corrosion resistance and to meet regulatory standards. All stainless-steel hardware undergoes an in-house surface treatment process to prevent galling. These components use a proprietary black oxide process on steel shaft collars to provide corrosion protection and ensure a smooth screw installation, increasing the transfer of clamping forces from the screw to the collar-shaft interface while preventing stick-slip. The Ruland name and bore size are stamped on every shaft collar for ease of identification.
These clamp-style shaft collars from are available in 1215 lead-free steel with a black oxide or zinc plated finish, 303 and 316 stainless steel, 2024 aluminum with a bright or anodized finish, grade 5 titanium, and engineered plastic. They are machined to a fine burr-free finish that complements or enhances the appearance of medical analysis equipment.
The shaft collars are manufactured in a variety of styles including standard round bore, thin line, quick clamping, double-wide, threaded, and mountable, giving designers the flexibility to specify the product that best matches application requirements. They are offered in bore sizes ranging from 1/8 (3 mm) to 6-in. (150 mm). All shaft collars are manufactured in Ruland’s Marlborough, Massachusetts factory under strict controls using proprietary processes for superior fit, finish and holding power. They are RoHS3 and REACH compliant.
Summary:
- Proprietary processes to ensure superior fit, finish and holding power
- Tightly controlled face to bore perpendicularity for proper alignment of mating components
- Fastening hardware performs above industry standards for maximum torque capabilities and holding power
- Wide variety of standard in-stock shaft collars to meet application needs
- RoHS3 and REACH compliant
Ruland
ruland.com
